SCHILLER CARDIOVIT AT-1 G2

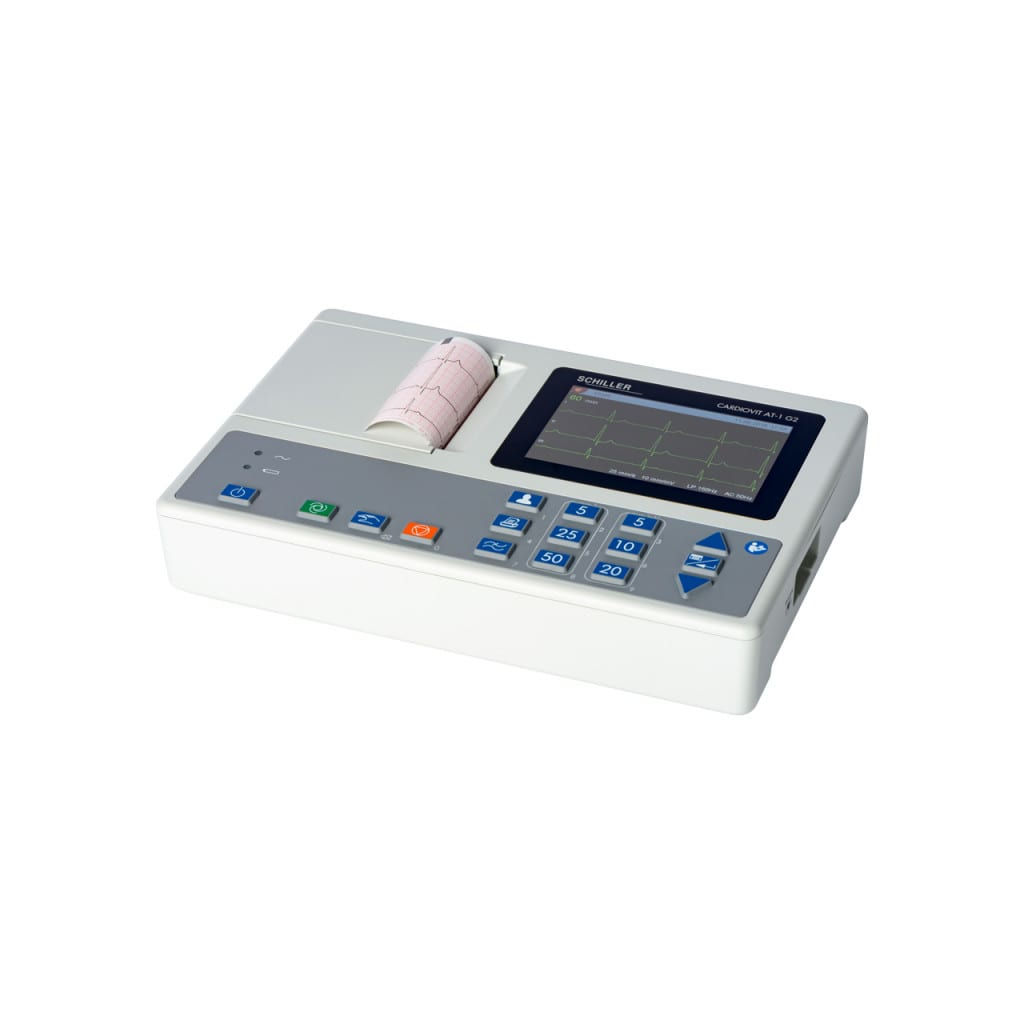

SCHILLER CARDIOVIT AT-1 G2 The Schiller Cardiovit AT-1 G2 is a 12-lead resting ECG machine that offers excellent ECG signal quality, thanks to the high sample rate and wide frequency range. The signal preview and quality control are done in real time; misplaced electrodes are automatically recognised by the Schiller ECG machine. This effectively prevents false recordings. All 12 leads (4 x 3) can be observed on the display of the Schiller Cardiovit and the ECG results can be immediately printed, using the integrated thermal printer. The results can also be optionally transmitted in PDF format, although a USB flash drive is required to do so. Product Details Model: Cardiovit AT-1 G2 12-lead resting ECG machine 5 inch colour LCD display Signal preview and quality control in real time Automatic recording (10 seconds) Simple, intuitive operation Displays all 12 leads (4 x 3) Pacemaker recognition Recognises misplaced electrodes Mains and battery operated 4 hours of continuous use with fully charged battery Integrated 3-lead thermal printer Internal storage for up to 100 ECGs Data transmission as PDF via USB drive possible Automatic interpretation Easy to clean keyboard Automatic shutdown (11 minutes without activity) 1 year warranty Dimensions: 28.5 x 18.9 x 6.1 cm (H x W x D) Weight: approx. 1.94 kg (incl. thermal paper)
